DAH Solar

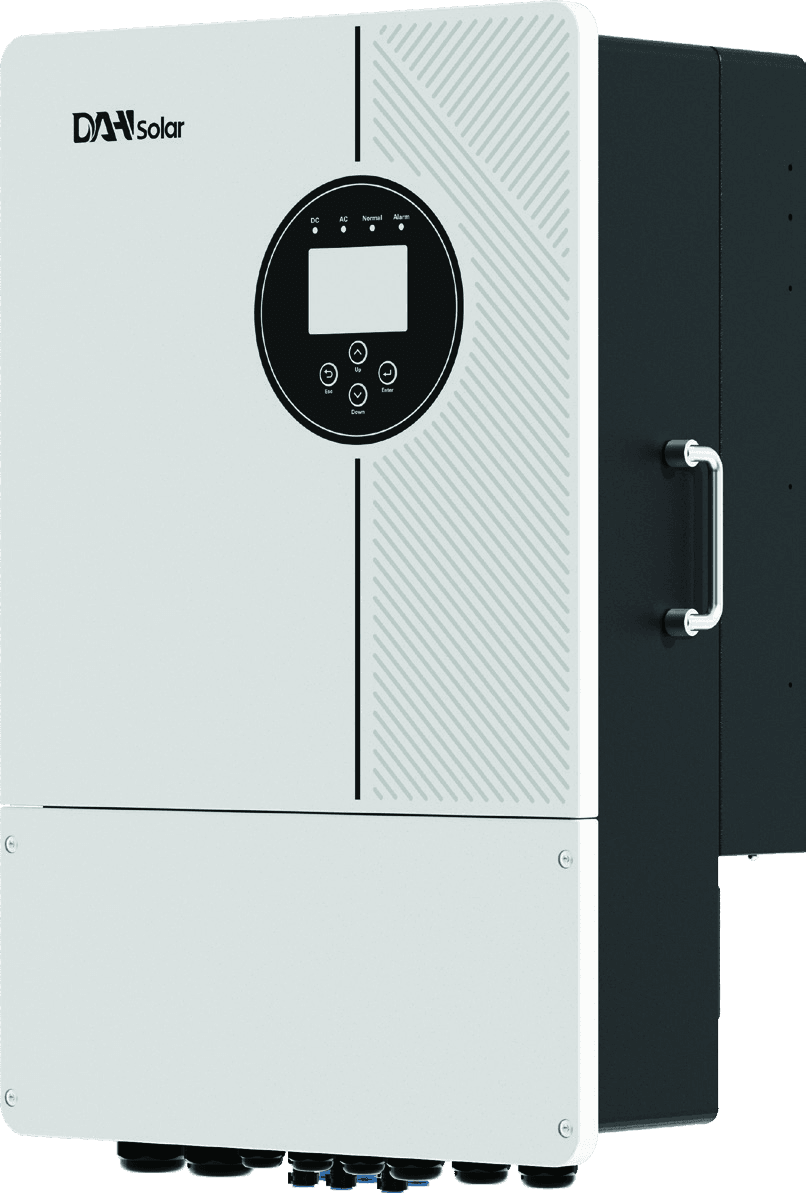

DHN-LVEH3P10K-EU-G1
The DAH Solar DHN-LVEH3P10K-EU-G1 is a reliable hybrid inverter solution for professional residential and commercial energy systems. Its proven design combines efficient operation, safe integration and scalable deployment.
16 kW
Maximaal PV-vermogen
210 A
Laden en ontladen
97,57%
Maximaal rendement
IP65
Beschermingsgraad
Designed as an energy system
Designed as a complete energy system
The DHN-LVEH3P10K-EU-G1 is engineered for dependable use in modern energy systems. Its architecture supports straightforward integration, monitoring and maintenance.
CJX Group supports professional partners with documentation, compatibility guidance, availability and project-specific advice.
Key benefits
Technical specifications
DHN-LVEH3P10K-EU-G1
Values according to the official DAH Solar product documentation.
Batterij
- Batterijtype
- Loodzuur / Li-ion
- Spanningsbereik
- 40–60 V
- Maximale laadstroom
- 210 A
- Maximale ontlaadstroom
- 210 A
- Laadstrategie Li-ion
- Automatische aanpassing via BMS
- Aantal batterijingangen
- 1
PV-ingang
- Maximaal PV-vermogen
- 16.000 W
- Maximale DC-spanning
- 800 V
- Opstartspanning
- 150 V
- MPPT-bereik
- 200–650 V
- Nominale DC-spanning
- 550 V
- MPPT's / strings
- 2 / 2+1
- Max. ingangsstroom
- 26 A + 16 A
- Max. kortsluitstroom
- 34 A + 20 A
AC & backup
- Nominaal actief vermogen
- 10.000 W
- Maximaal schijnbaar vermogen
- 11.000 VA*
- Nominale AC-stroom
- 15,2 / 14,5 A
- Maximale AC-stroom
- 16,7 / 15,9 A*
- Netspanning
- 220/380 V of 230/400 V
- Netfrequentie
- 50 / 60 Hz
- Netaansluiting
- 3L + N + PE
- Piekvermogen off-grid
- 2× nominaal, 10 seconden
- Omschakeltijd backup
- < 3 ms
- THDi
- < 2% bij nominaal vermogen
Algemeen
- Maximaal rendement
- 97,57%
- Europees rendement
- 96,85%
- MPPT-rendement
- > 99,99%
- Afmetingen (b × h × d)
- 450 × 677 × 255 mm
- Gewicht
- 36,2 kg
- Beschermingsgraad
- IP65
- Temperatuurbereik
- −40 °C tot +60 °C
- Koeling
- Intelligente luchtkoeling
- Communicatie
- RS485 / CAN
- Monitoring
- WiFi / Bluetooth
- Garantie
- 5 jaar
Product specifications may be changed by the manufacturer. Consult the current datasheet and installation manual before design or installation.
