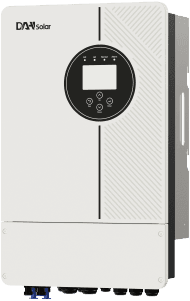

DAH Solar
DHN-LVEH1P8K-EU-G1
The DAH Solar DHN-LVEH1P8K-EU-G1 is a reliable hybrid inverter solution for professional residential and commercial energy systems. Its proven design combines efficient operation, safe integration and scalable deployment.
12,8 kW
Maximaal PV-vermogen
180 A
Laden en ontladen
97,6%
Maximaal rendement
IP65
Beschermingsgraad
Designed as an energy system
Designed as a complete energy system
The DHN-LVEH1P8K-EU-G1 is engineered for dependable use in modern energy systems. Its architecture supports straightforward integration, monitoring and maintenance.
CJX Group supports professional partners with documentation, compatibility guidance, availability and project-specific advice.
Key benefits
Technical specifications
DHN-LVEH1P8K-EU-G1
Values according to the official DAH Solar product documentation.
Batterij
- Batterijtype
- Loodzuur / Li-ion
- Spanningsbereik
- 40–60 V
- Maximale laadstroom
- 180 A
- Maximale ontlaadstroom
- 180 A
- BMS-aansturing
- Automatische aanpassing
- Aantal batterijingangen
- 1
PV-ingang
- Maximaal PV-vermogen
- 12.800 W
- Maximale DC-spanning
- 500 V
- Opstartspanning
- 120 V
- MPPT-bereik
- 120–425 V
- Nominale PV-spanning
- 370 V
- MPPT's / strings
- 2 / 1+1
- Max. bedrijfsstroom
- 20 A + 20 A
- Max. kortsluitstroom
- 23 A per ingang
AC & backup
- Nominaal vermogen
- 8.000 W
- Max. schijnbaar vermogen
- 8.800 VA*
- Nominale AC-stroom
- 36,4 A in / 34,8 A uit
- Maximale AC-stroom
- 40 A in / 38,3 A uit
- Continue AC-doorvoer
- 54 A
- Piekvermogen off-grid
- 2× nominaal, 10 seconden
- Netaansluiting
- L + N + PE
- THDi
- < 2% bij nominaal vermogen
Algemeen
- Maximaal rendement
- 97,60%
- Europees rendement
- 96,50%
- MPPT-rendement
- 99%
- Afmetingen (b × h × d)
- 330 × 563 × 223 mm
- Gewicht
- 23,7 / 24,9 kg (variantafhankelijk)
- Beschermingsgraad
- IP65
- Temperatuurbereik
- −40 °C tot +60 °C
- Communicatie
- RS485 / CAN
- Monitoring
- WiFi
- Garantie
- 5 of 10 jaar, locatieafhankelijk
Product specifications may be changed by the manufacturer. Consult the current datasheet and installation manual before design or installation.
