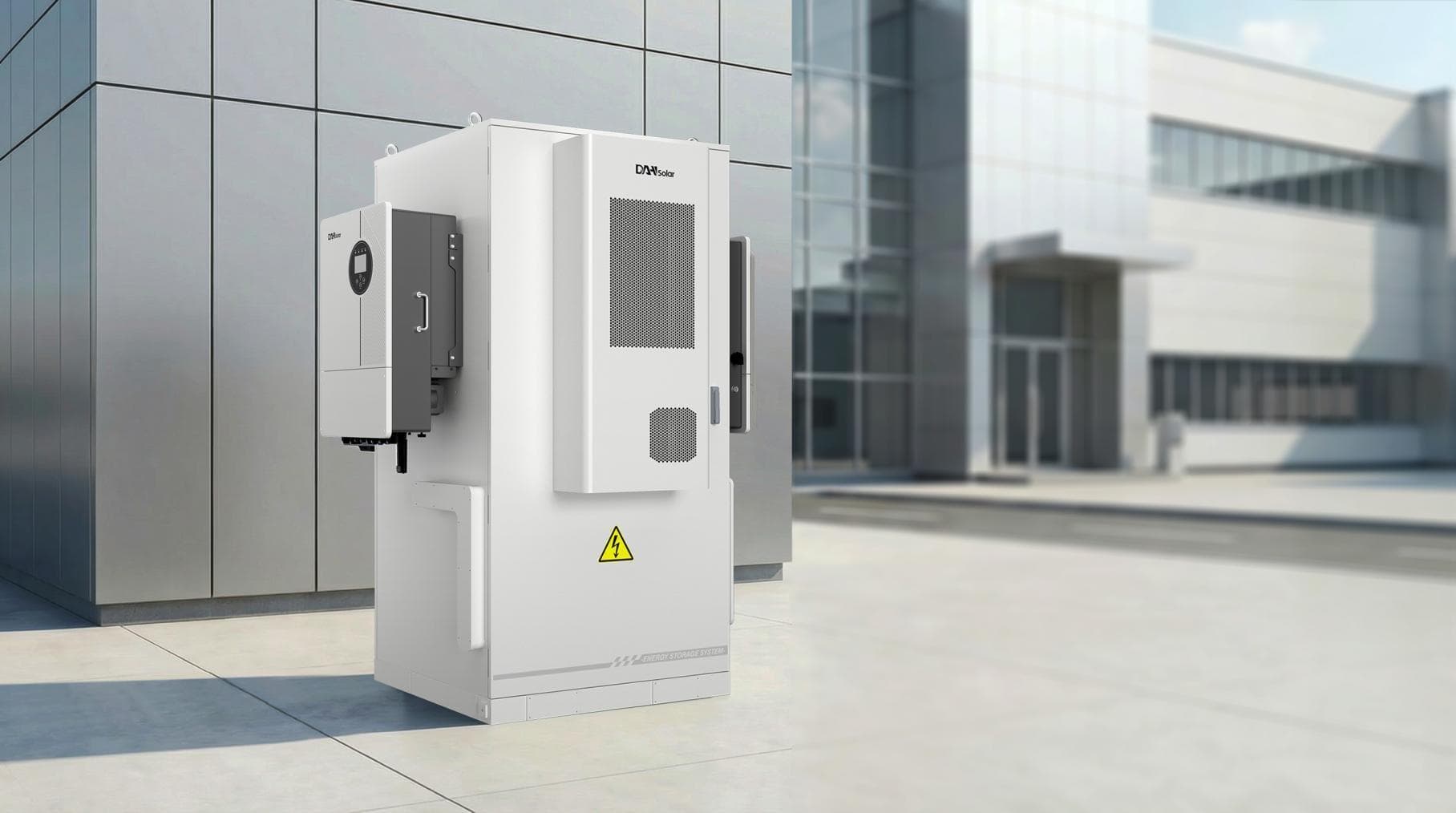

DAH Solar
DHN-HVC05×12-G1
The DAH Solar DHN-HVC05×12-G1 is a reliable industrial battery storage solution for professional residential and commercial energy systems. Its proven design combines efficient operation, safe integration and scalable deployment.
62 kWh
Nominale energie
614,4 V
Nominale spanning
≥ 6.000
Opgegeven cycli
5 jaar
Fabrieksgarantie
Designed as an energy system
Designed as a complete energy system
The DHN-HVC05×12-G1 is engineered for dependable use in modern energy systems. Its architecture supports straightforward integration, monitoring and maintenance.
CJX Group supports professional partners with documentation, compatibility guidance, availability and project-specific advice.
Key benefits
Technical specifications
DHN-HVC05×12-G1
Values according to the official DAH Solar product documentation.
Batterijsysteem
- Batterijmodule
- DHN-HVRES05-G1
- Celchemie
- LiFePO₄
- Nominale energie
- 62 kWh
- Batterijcapaciteit
- 102 Ah
- Nominale spanning
- 614,4 V
- Werkspanningsbereik
- 518,4–700,8 V
- Aanbevolen DoD
- ≤ 90%
- Levensduur
- ≥ 6.000 cycli bij 70% EOL
Stroom & integratie
- Aanbevolen laad-/ontlaadstroom
- 50 A
- Max. laad-/ontlaadstroom
- 100 A
- Communicatie
- CAN 2.0 / RS485
- Koelmethode
- Luchtkoeling
- Systeemtype
- Outdoor DC-batterijkast
- Omvormer
- Compatibele hybride omvormer van derden
Mechanisch & omgeving
- Afmetingen (b × h × d)
- 1160 × 2230 × 1060 mm
- Gewicht
- 1.400 kg
- Beschermingsgraad behuizing
- IP55
- Corrosieklasse
- C3
- Laadtemperatuur
- 0 °C tot +50 °C
- Ontlaadtemperatuur
- −20 °C tot +55 °C
- Opslagtemperatuur
- 0 °C tot +35 °C
Veiligheid & certificering
- Brandbeveiliging
- Geïntegreerde aerosol-brandbeveiliging
- SOC-zelfkalibratie
- Opgegeven nauwkeurigheid ±1%
- Software
- OTA-upgrades
- Cyclustest
- 25 ± 2 °C, 0,5C/0,5C, 70% EOL
- Garantie
- 5 jaar
- Certificering
- IEC61000-CE / IEC62619-CB / UN38.3
Product specifications may be changed by the manufacturer. Consult the current datasheet and installation manual before design or installation.
Interested in the DHN-HVC05×12-G1?
Ask CJX Group for current dealer pricing, stock and system compatibility.
